Size: 15 sq.mm to 25 sq.mm
Core coulor: Red & Black
Size: 1,5 sq.mm to 70 sq.mm
Core coulor: Red,Yellow,Blue

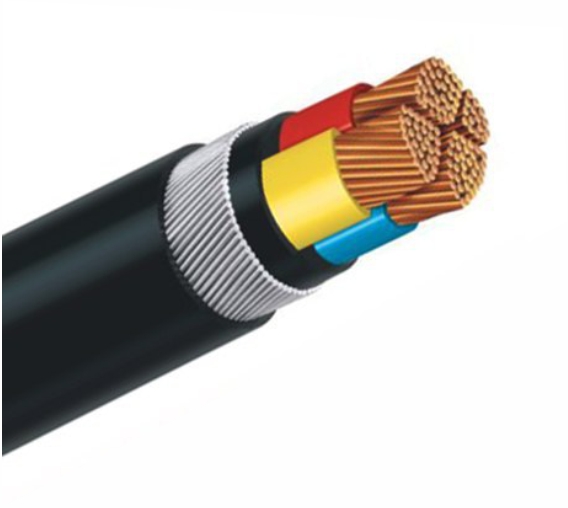

Size: 1.5 sq.mm to 120 sq.mm
Core coulor: Red,Yellow,Blue & Black
| No.of Cores | Non. Cross Sectional area | Nom Thickness of Insulation | min. Thikness of inner Sheath | GI Flatestrip | min. Thikness of Outer Sheath | Appx.Overall Diam. of cable | Appx. widght of cable | Nax. du Resistance of conductor at 20*C | Current Rating | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Round wire non.dia. | G.I Flat strip nom. Thicknss | In Ground | In Air | ||||||||
| NO. | Sq.mm | mm. | mm. | mm. | mm. | mm. | mm. | Kg/Km | Ohms/Km | Amps | Amps |
| 2C | 4 | 0.7 | 0.3 | 1.4 | - | 1.24 | 15.5 | 520 | 4.61 | 51 | 44 |
| 3C | 4 | 0.7 | 0.3 | 1.4 | - | 1.24 | 16.0 | 510 | 4.61 | 43 | 36 |
| 4C | 4 | 0.7 | 0.3 | 1.4 | - | 1.24 | 17.5 | 600 | 4.61 | 43 | 36 |
| 2C | 6 | 0.7 | 0.3 | 1.4 | - | 1.24 | 16.0 | 560 | 3.80 | 693 | 56 |
| 3C | 6 | 0.7 | 0.3 | 1.4 | - | 1.24 | 17.0 | 630 | 3.08 | 54 | 47 |
| 4C | 6 | 0.7 | 0.3 | - | 4x0.8 | 1.24 | 18.0 | 700 | 3.08 | 54 | 47 |
| 2C | 10 | 0.7 | 0.3 | - | 4x0.8 | 1.24 | 17.5 | 730 | 1.83 | 88 | 75 |
| 3C | 10 | 0.7 | 0.3 | - | 4x0.8 | 1.24 | 19.0 | 830 | 1.83 | 72 | 62 |
| 4C | 10 | 0.7 | 0.3 | - | 4x0.8 | 1.40 | 21.0 | 970 | 1.83 | 60 | 52 |
| 2C | 16 | 0.7 | 0.3 | - | 4x0.8 | 1.24 | 18.0 | 800 | 1.15 | 94 | 85 |
| 3C | 16 | 0.7 | 0.3 | - | 4x0.8 | 1.24 | 18.5 | 825 | 1.15 | 94 | 85 |
| 4C | 16 | 0.7 | 0.3 | - | 4x0.8 | 1.40 | 20.0 | 1275 | 1.15 | 94 | 85 |
| No of Cross | Nom. Cross sectional area | NOM.Thickness PVC Insulated | Min. Thickness of inner sheath | Nom. Size of GI Flat Strip | Min.Thickness of outer sheath | Approx. overall Diam. of cable | Appx.Weight of cable | Max.dc Resistance of conductor at 20*c | Current rating | |
|---|---|---|---|---|---|---|---|---|---|---|
| In Ground | Air | |||||||||
| No. | Sq.mm | mm. | mm. | mm. | mm. | mm. | Kg/Km | Ohms/Km | Amps | Amps |
| 2 | 25 | 0.9 | 0.3 | 4x0.8 | 1.40 | 19.0 | 910 | 0.727 | 120 | 125 |
| 3 | 25 | 0.9 | 0.3 | 4x0.8 | 1.40 | 20.5 | 1235 | 0.727 | 120 | 125 |
| 3 | 35 | 0.9 | 0.3 | 4x0.8 | 1.40 | 20.5 | 1250 | 0.727 | 120 | 125 |
| 3 | 50 | 1.0 | 0.3 | 4x0.8 | 1.40 | 25.6 | 2020 | 0.387 | 170 | 190 |
| 4 | 25 | 0.9 | 0.3 | 4x0.8 | 1.40 | 23.0 | 1520 | 0.727 | 120 | 125 |
| 4 | 35 | 0.9 | 0.3 | 4x0.8 | 1.40 | 25.5 | 2100 | 0.524 | 145 | 155 |
| 4 | 50 | 1.0 | 0.4 | 4x0.8 | 1.56 | 28.2 | 2720 | 0.387 | 170 | 190 |
| 4 | 70 | 1.1 | 0.4 | 4x0.8 | 1.56 | 32.0 | 3600 | 0.268 | 210 | 235 |
| 4 | 95 | 1.1 | 0.4 | 4x0.8 | 1.72 | 35.0 | 4800 | 0.193 | 250 | 290 |
| 4 | 120 | 1.2 | 0.5 | 4x0.8 | 1.72 | 39.0 | 5800 | 0.153 | 285 | 330 |
