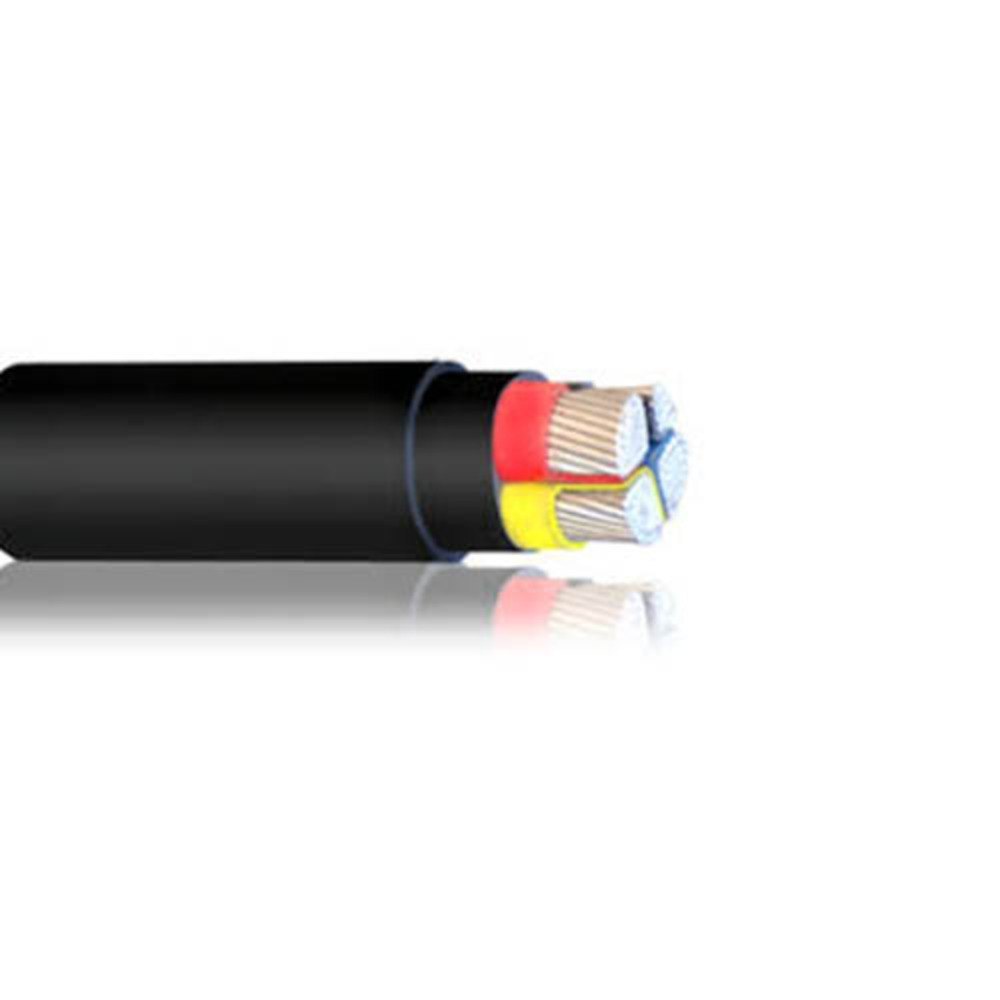

Outer colour: Black
1 Core Size: 16 sq.mm to 400 sq.mm
2 Core Size: 4 sq.mm to 25 sq.mm
Core colour: Red & Black
3 Core Size: 4.0 sq.mm to 35 sq.mm
Core colour: Red,Yellow ,Blue
4 Core Size: 4 sq.mm to 120 sq.mm
Core colour: Red,Yellow,Blue & Black
| No.of Cores | Non. Cross Sectional area | Nominal Thickness of XLPE insulation | Minimum Thickness of inner sheath | Nominal Thickness of Outer Sheath | Approx Overall Dia of cable | Approx WT of Cable | Max D.c Resistance of conductor at 20 c | Current Rating | |
|---|---|---|---|---|---|---|---|---|---|
| No. | Sq.mm | mm | mm | mm | mm | Kg/Km | Ohms/Km | Amps | Amps |
| 2 | 16 | 0.7 | 0.3 | 1.80 | 14 | 250 | 1.91 | 78 | 70 |
| 2 | 25 | 0.9 | 0.3 | 2.0 | 18 | 400 | 1.20 | 95 | 99 |
| 3 | 16 | 0.7 | 0.3 | 1.80 | 17 | 350 | 1.91 | 78 | 70 |
| 3 | 25 | 0.9 | 0.3 | 2.0 | 20 | 500 | 1.20 | 94 | 96 |
| 3 | 35 | 0.9 | 0.3 | 2.0 | 22 | 600 | 1.868 | 113 | 117 |
| 4 | 16 | 0.7 | 0.3 | 1.8 | 19 | 450 | 1.91 | 78 | 70 |
| 4 | 25 | 0.9 | 0.3 | 2.0 | 22 | 600 | 1.20 | 94 | 96 |
| 4 | 35 | 0.9 | 0.3 | 2.0 | 24 | 750 | 0.868 | 113 | 117 |
| 4 | 50 | 1.0 | 0.3 | 2.0 | 27 | 950 | 0.641 | 133 | 142 |
| 4 | 75 | 1.1 | 0.4 | 2.2 | 31 | 1300 | 0.443 | 164 | 179 |
| 4 | 95 | 1.1 | 0.4 | 2.2 | 35 | 1700 | 0.320 | 196 | 221 |
| 4 | 120 | 1.20 | 0.4 | 2.4 | 39 | 2100 | 0.253 | 223 | 257 |
| 4 | 150 | 1.40 | 0.5 | 2.6 | 43 | 2550 | 0.206 | 249 | 292 |
| 4 | 185 | 1.60 | 0.5 | 2.8 | 48 | 3150 | 0.164 | 282 | 337 |
| 4 | 240 | 1.7 | 0.6 | 3.0 | 54 | 4000 | 0.125 | 326 | 399 |
